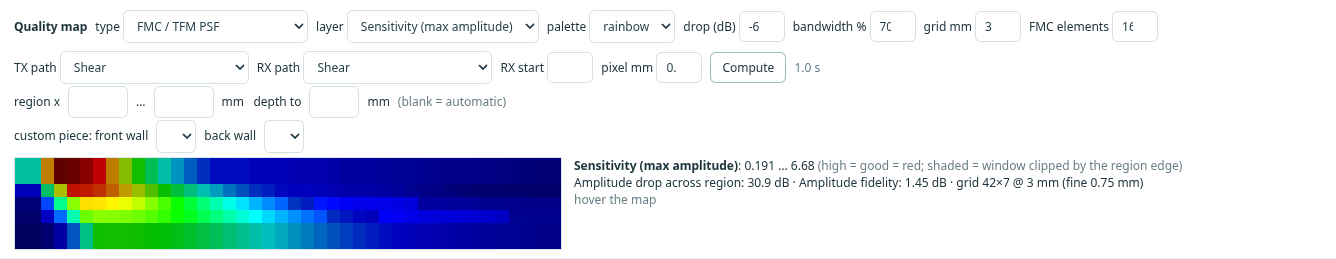

A quality map colours the part by how strongly a beamset would detect a small reflector at each point, taking beam spread, aperture and the angle between the beam and the reflector into account. Use it to see gaps in coverage before you commit to a scan plan. Maps can be added to a report.
