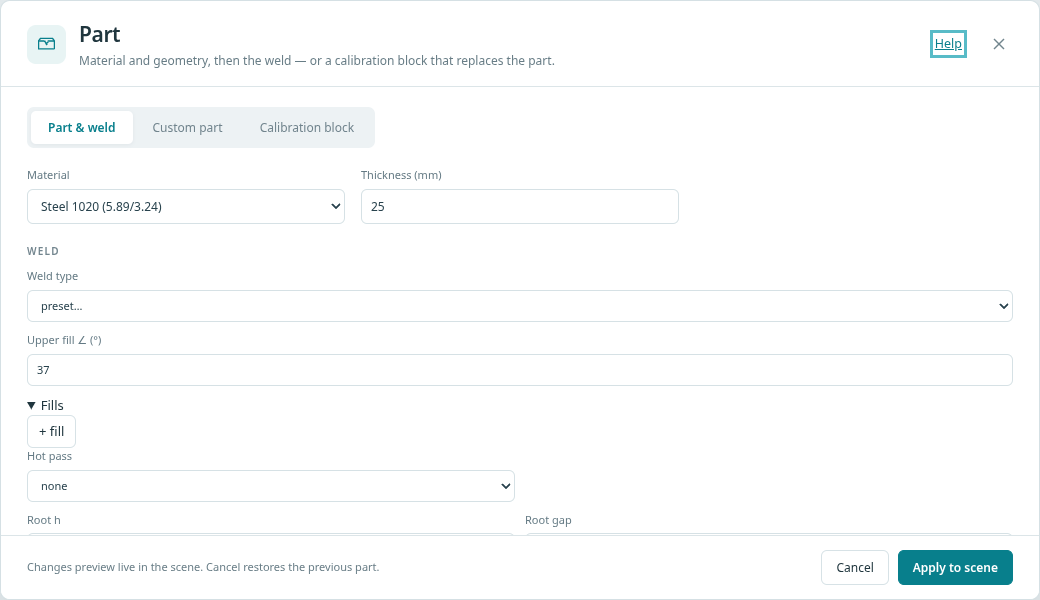

Enter the thickness, longitudinal and shear velocities and the pipe diameter if the part is round. The weld is described by its bevel regions from the root up to the cap and by the heat-affected zone width. Zones used for coverage checks are generated either by length or by count.
Warnings appear when a beam leaves the part, when the weld width is inconsistent with the bevels, or when a velocity looks implausible for the chosen mode.
